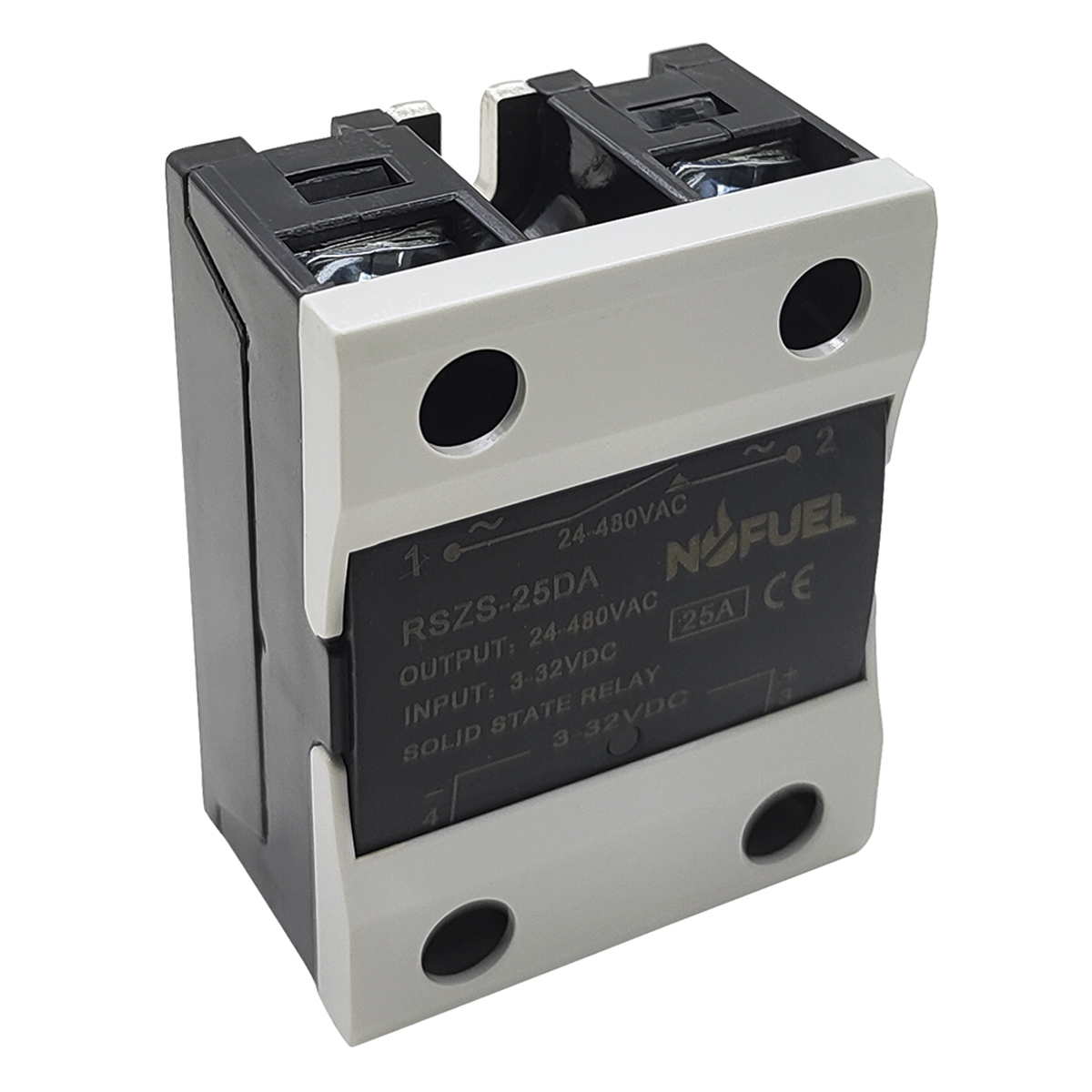

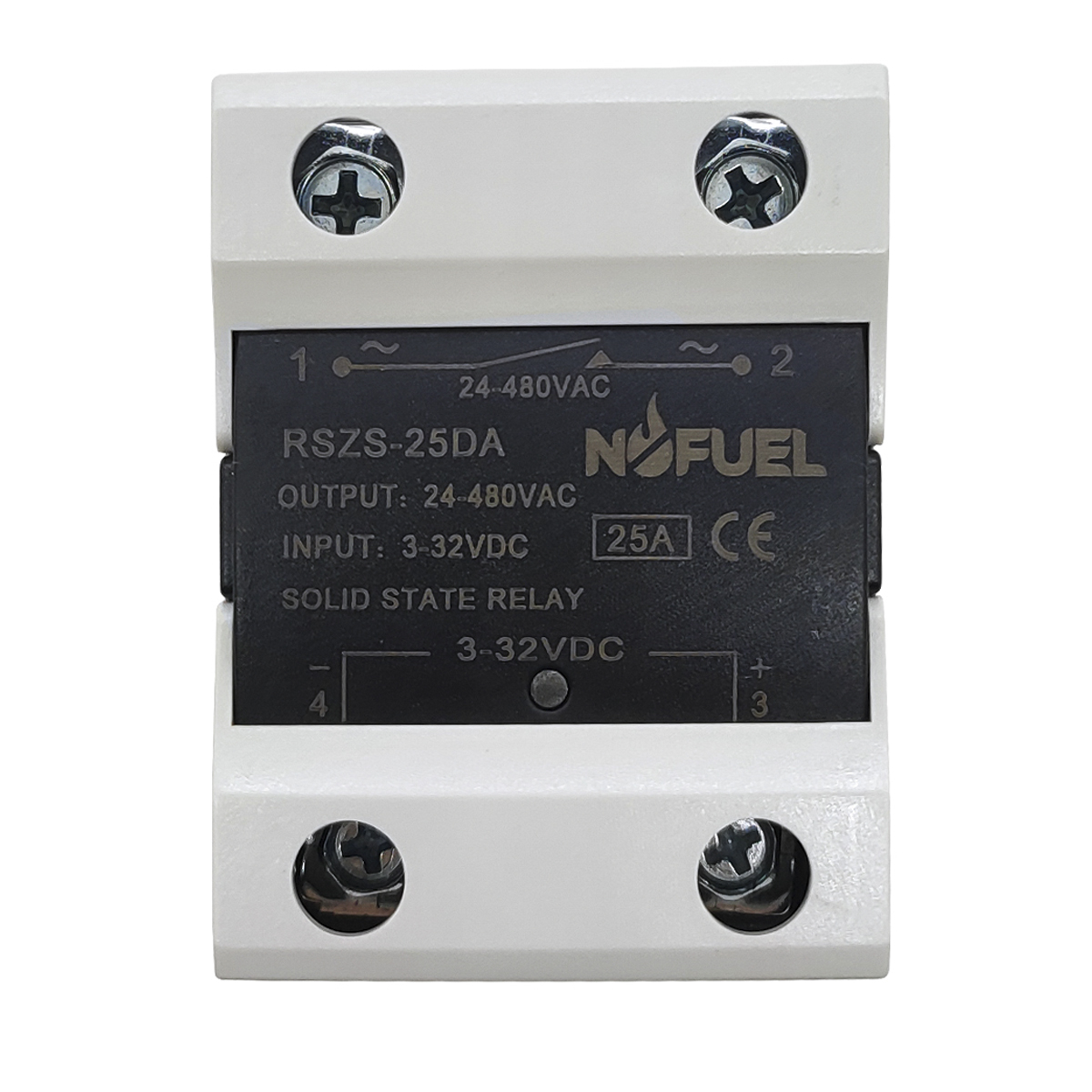

RSZS-25DA Nofuel Solid State Relay Module Can replace SSR-25DA 25A

Short Description:

Model: RSZS-25 DA
Control Mode:DC-AC
Load Voltage: 24-480VAC
Load Current: 25A
Control Voltage: 3-32VDC
Control Current: DC3-25mA
Working voltage: 250V
On voltage: ≤1V
One-off Time: ≤10ms
Off leakage Current: ≤2mA
Installation Method:  Bolt Fixed
Working Indication: LED


Product Detail

Product Tags

Product Description

Nofuel Solid State Relay RSZS-25DA Input 24-480VAC Output 3-32VDC 25A

This is RSZS-25DA Single-phase Soild State Relay. It can be driver by Arduino directly without any expanding circuit because of its built-in opto-couple. The plastic protective cover makes it be a safer relay module.

RSZS solid state relay uses inflaming retarding engineering plastic shell, epoxy resin encapsulation and screw terminal connection. This series solid state relay has high structural strength, impact resistance and strong resistance to vibratility. The low input drive current makes it convenient to connect with computer terminal and various digital programmable interface circuit.

It is widely used in automation control field such as petrochemical equipment, food machinery, packaging machinery, textile machinery, CNC machine, plastic machinery, fitness equipment, recreational facilities, especially suitable for severe environments like corrosion, moisture, dust prevention, explosive requirements and frequent switch occasions. RSZS series solid state relay are update replacement products of a.c. contactor.

Features

1. Reliable SMT technology
2. High ultra insulation resistance over 50MΩ/500V DC
3. High dielectric over 2.5KV
4. Low enable current less than 7.5mA/12V DC, compatible with CMOS IC or TTL
5. Low EMI/EFI & surge by zero cross trigger method
6. High surge current over 410A/one cycle (60Hz)
7. High surge voltage duration by snubber circuit
