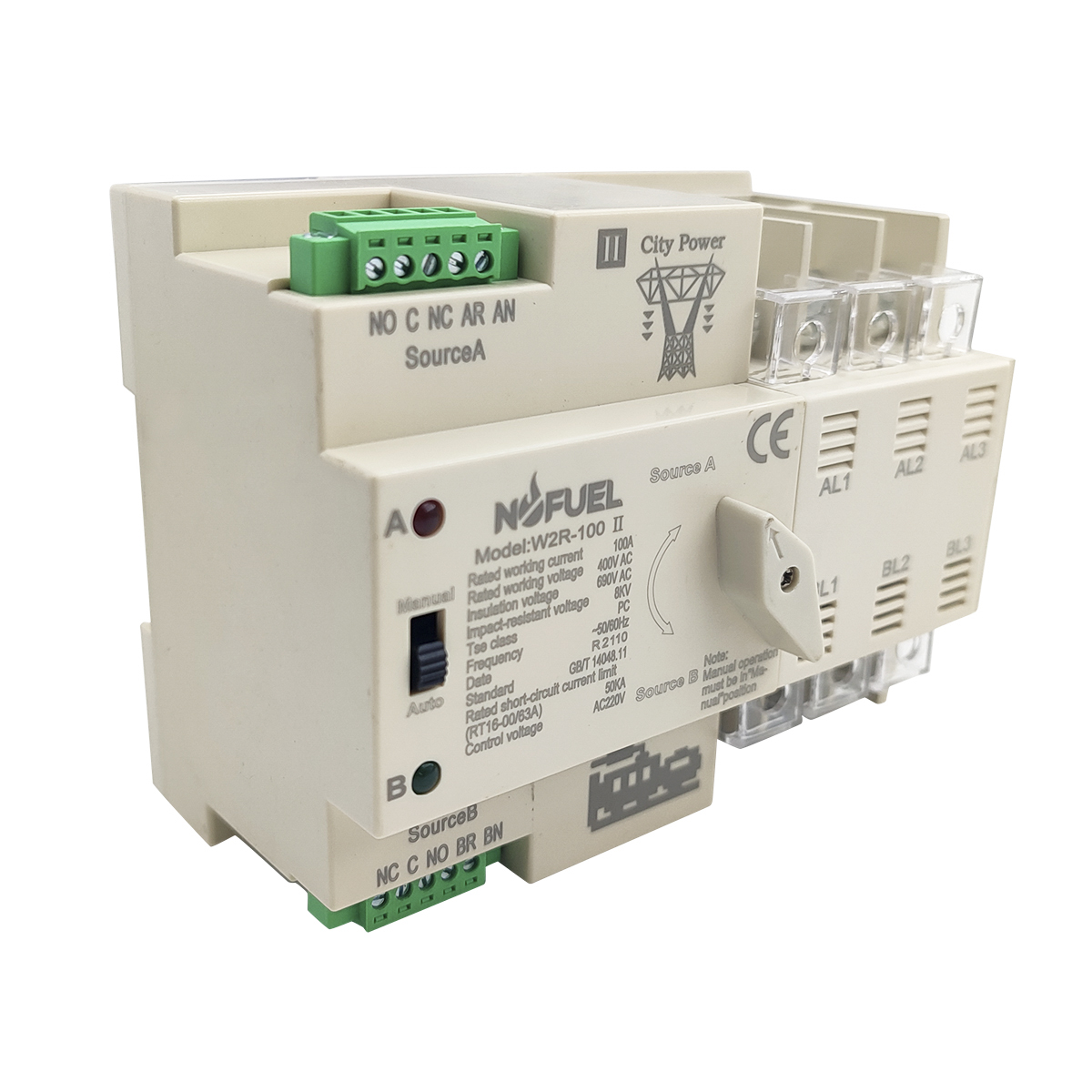

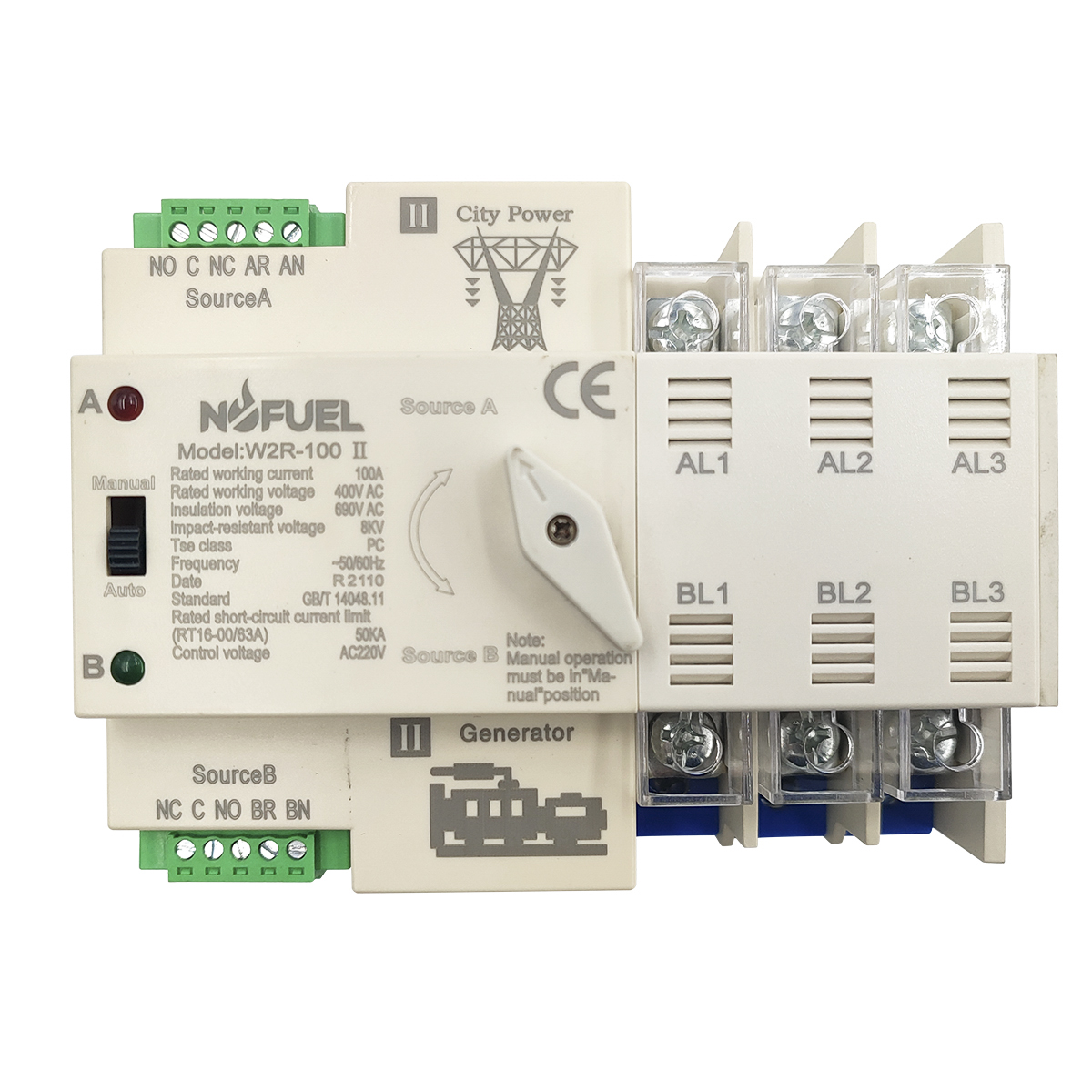

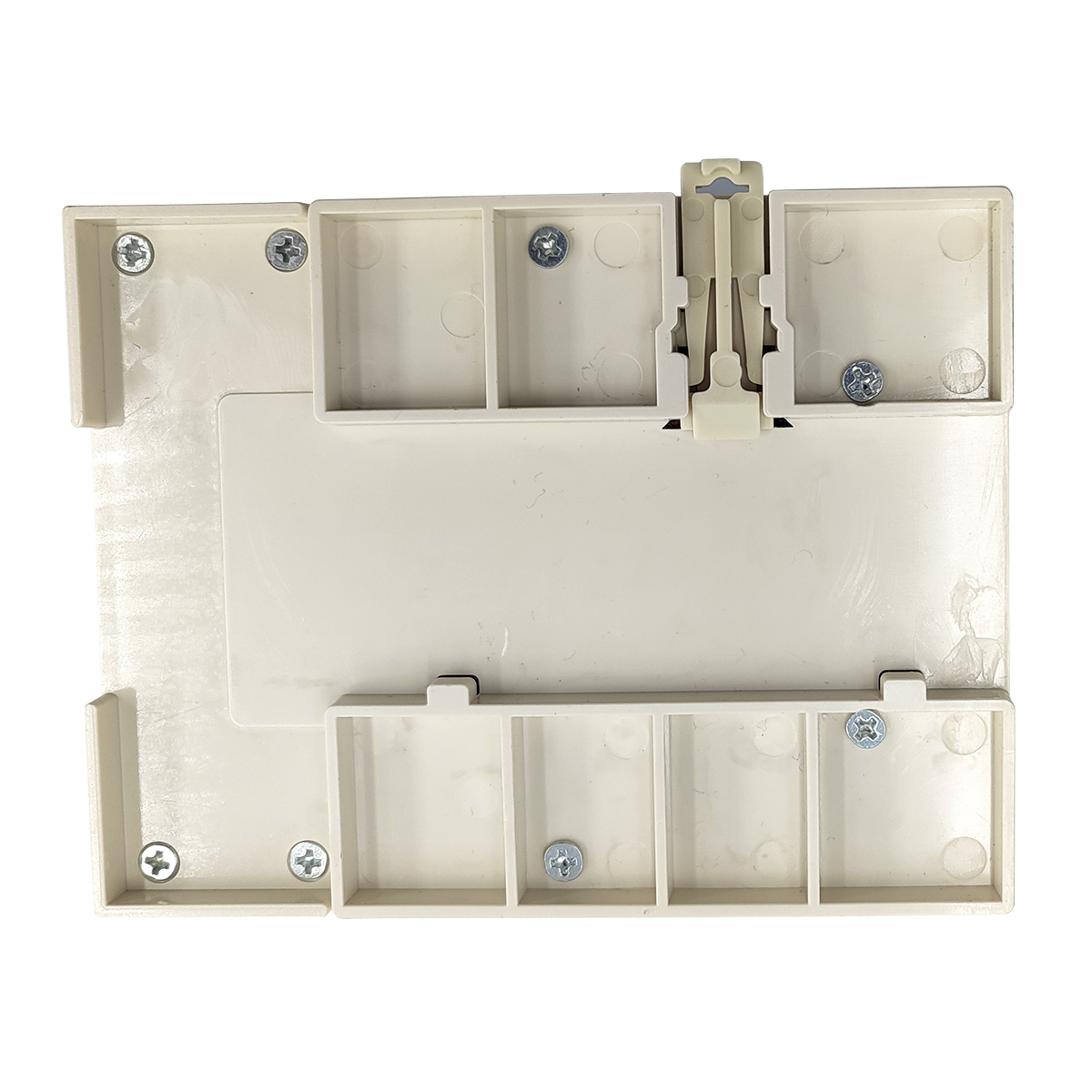

NOFUEL Dual Power Automatic Transfer Switch 3P 100A 220V Grid to AC Generator PC

Short Description:

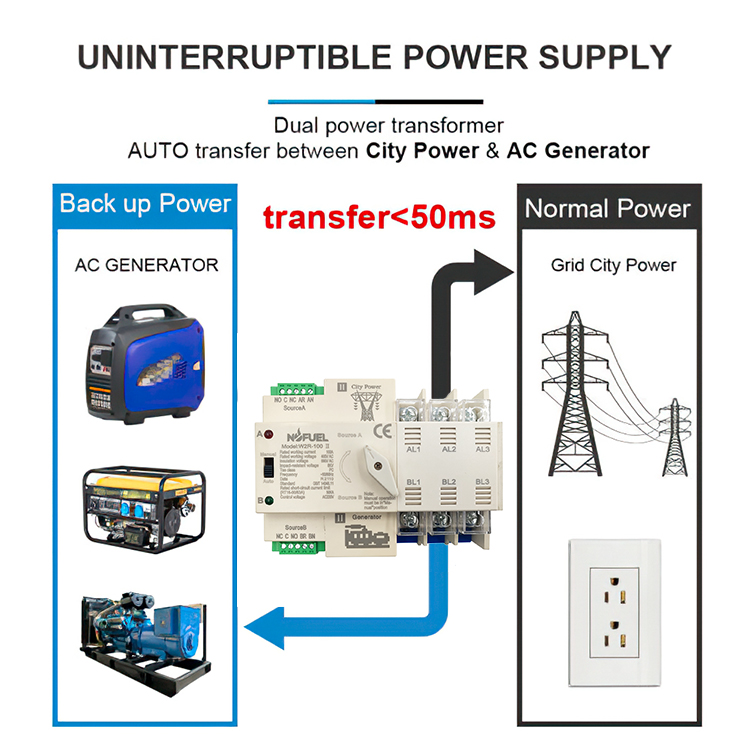

Series dual power automatic transfer switches are newly developed miniaturehousehold power transfer switches. This switch is mainly used to test whetherthe normal or standby power supply is normal. When the normal powersupply is abnormal, the backup power supply will work immediately toensure the continuity, reliability and safety of the power supply. This productis specially designed for home track TV installation and is specially used for Pz30 distribution box.


Product Detail

Product Tags

Overview

Series of automatic transfer switches are suitable for emergency power system400v, 60A with AC rated current of 50v or 60HZ, compact structure, reliableconversion, easy installation and maintenance. long life. It is widely used invarious occasions where continuous power failure is not allowed. It can beoperated electrically or manually by ATS, and the controller.

Complies with requirements of Low-voltage Switch Gear and Control Gearspecified by IEC 60947-6-1 and IEC60947-3: functional equipmentandtransfer switch equipment

NOFUEL Dual Power Automatic Transfer Switch 3P 100A 220V Grid to AC GeneratorNOFUEL Dual Power Automatic Transfer Switch 3P 100A 220V Grid to AC GeneratorNOFUEL Dual Power Automatic Transfer Switch 3P 100A 220V Grid to AC Generator

Wiring mode

NOFUEL Dual Power Automatic Transfer Switch 3P 100A 220V Grid to AC Generator



Wiring diagram of controller

NOFUEL Dual Power Automatic Transfer Switch 3P 100A 220V Grid to AC Generator

1. ( Must be connected ) Take zero line and fire

2. ( Must be connected ) Take zero line and fire

3. The power indication signal is passivethe isolation board ( it is recommended tooutput , and the generator signal is takenconnect the load first . then connect the( common ) and ( normally closed )backup power supply )

4. Connect the load end at the lower end ofline from the common control incoming linethe ( standby power supply side ) , Steppedto connect AR ( live wire ) 1 AN ( neutral linewiring

5. There is an isolation board on the loadline from the backup control incoming lineWhen wiring , first remove the isolationto connect BR ( live wire ) / BN ( neutral lineboard . connect the oad and then install

Note : Normal type wiring same as solar type . For solar type , the backup power must beconnected to the city power.
