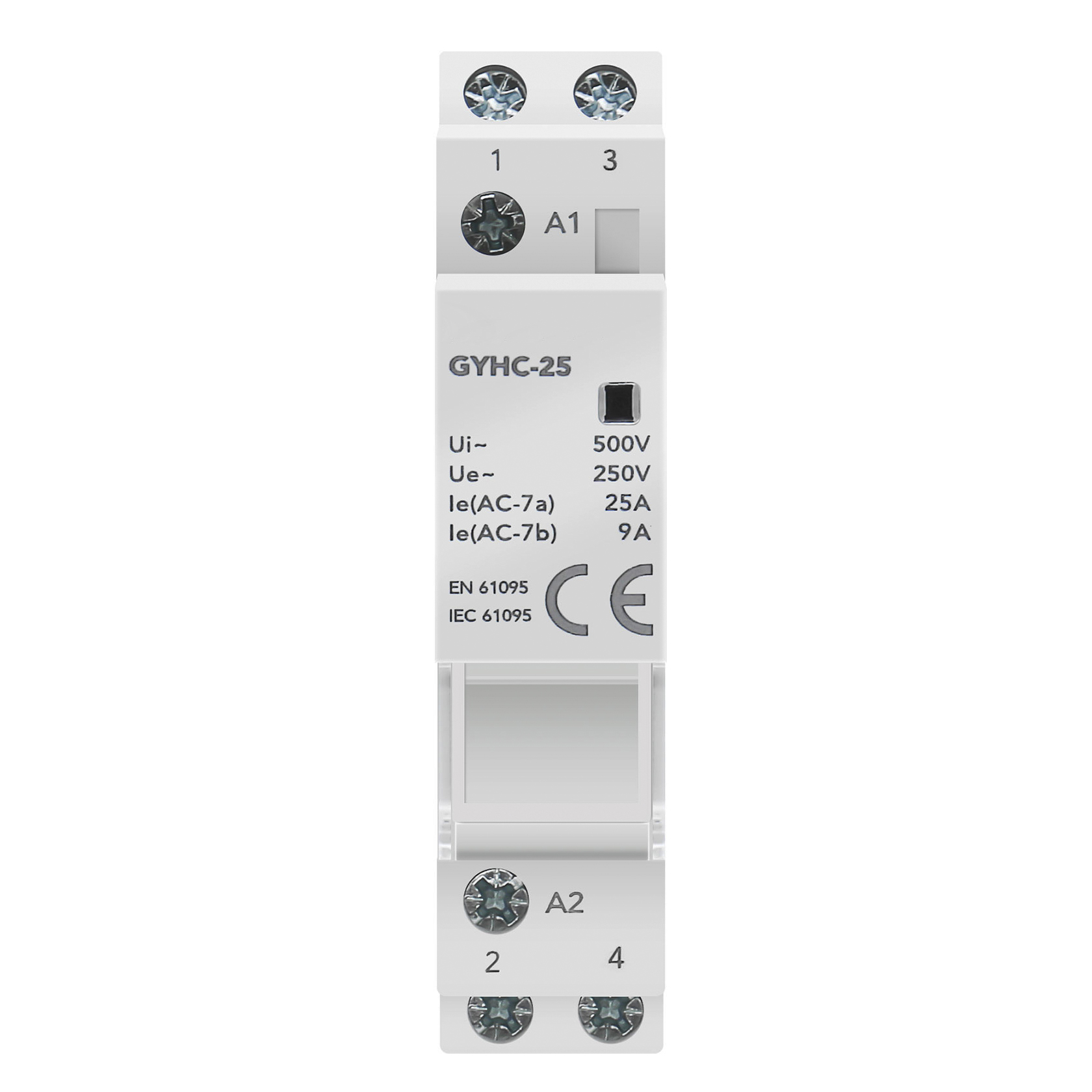

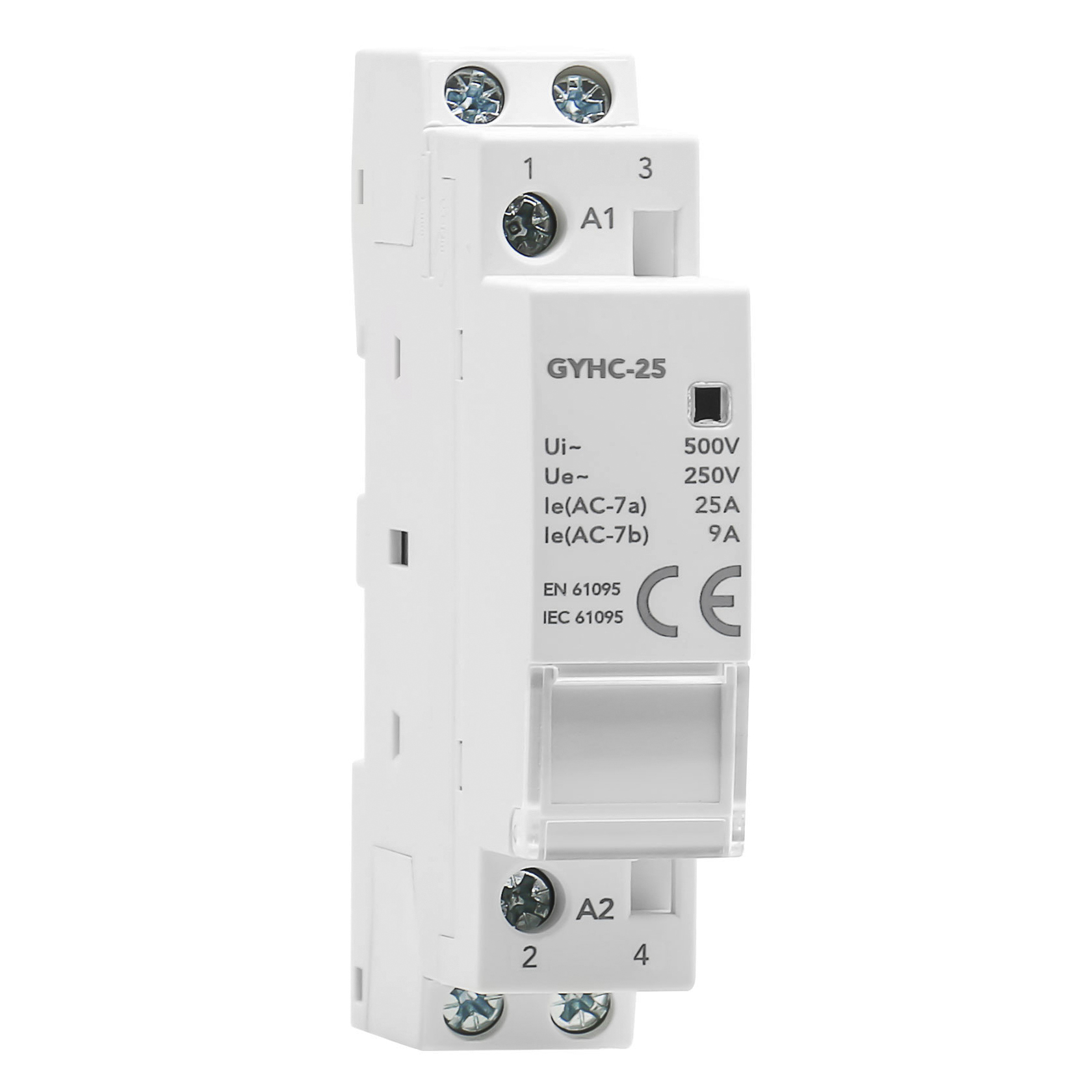

GYHC 1P 25A 1NO AC 220V/230V Manual Control Household Contactor Din Rail Type

Short Description:

The GYHC series modular contactor uses a new technology platform and applies automated production and testing equipment to create advanced ultra-quiet and long–life contactors. GYHC contactor can be used for remote control:

(1)Lighting, heating, ventilation, rolling curtains, public hot water

(2)Mechanical ventilation system, etc.

(3)Low inductive micro –inductive load environment


Product Detail

Product Tags

Type Rated current(In) Control voltage (V AV) (50/60Hz) Contact Multiple Of The Width Of The Module (Multiple of 9 mm)
AC-7a AC-7b
1P 16A 6A 24V/48V/110V/230V 1NO
1NC
2
20A 7A
25A 9A
2P 16A 6A 24V/48V/110V/230V 2NO
2NC
1NO1NC
2
20A 7A
25A 9A
32A 12A 4
40A 15A
63A 20A
3P 16A 6A 24V/48V/110V/230V 3NO
3NC
4
20A 7A
25A 9A
32A 12A 6
40A 15A
63A 20A
4P 16A 6A 24V/48V/110V/230V 4NO
4NC
2NO2NC
3NO1NC
4
20A 7A
25A 9A
32A 12A 6
40A 15A
63A 20A



3D Design & Simulation Analysis

Advanced technologies such as 3D design ,3D printing, tolerance analysis and simulation analysis are used for product development

Rich model specifications

The GYHC series modular contactors have 2 use categories ,4 control voltages ,6 –segment current specifications and 1 1contact types to meet the needs of different market segments

Transparent flip cover design

Transparent flip cover design New transparent flip cover design for easy customer identification

Finest material selection & Standard

Custom plastic, brand silver point, elite craft, RoHS compliant

Visualization window

The instruction window can indicate the on –off state of the contactor, make product action clear at a glance,

Laser marking

Laser marking, never fall off
