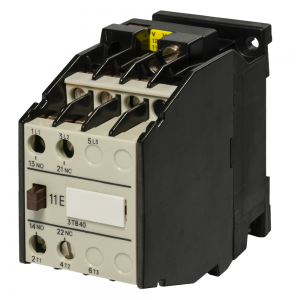

LC1-K TeSys K mini contactor

Short Description:

LC1-K series AC contactor is suitable for use in the circuits up to the rated and frequent starting, controlling the AC motors. The addtion of auxiliary contact group to the contactor, combined with the proper thermal relay, can act to protect the circuit bound to overload.

TeSys K Compact contactors up to 7.5kW 400/415V with a wide variety of coil voltage and terminal connection options.

FOB Price: US $5 - 499 / Piece

Supply Ability: 5000 Pcs per Month

Payment Terms: L/C, D/P, T/T, Paypal

Control voltage: 24V 48V 72V 110V 230V 240V 380V 440V 480V

Brand : Nofuel

Send email to us Download as PDF

Product Detail

Product Tags

Type	Rated working current A(380V)	220V	AC-3 use group control power (kW) 380V~415V 440~500V				660V	Contact data(1)
LC1-K06	6	1.5		2.2	3	3		3P+NO 3P+NC
LC1-K09	9	2.2		4	4	4		3P+NO 3P+NC
LC1-K12	12	3		3	5	5		3P+NO 3P+NC

Specifications LC1-K06 LC1-K09 LC1-K12
Use group under AC-3			6	9	12
Rated working current(le)A			5	7.5	10
Conventional thermal current(lth)A			16	20	20
Rated working voltage(Ue)V			380 660
Rated insullation voltage(Ui)V			690
AC-3(6le le)	Electrical life(time)		0.5×106
	Operation frequency h-1		1200
AC-3(6le le)	Electrical life(time)		10×104
	Operation frequency h-1		300
Mecnical life Auxiliary contact	Conventional thermal current		3×106 6A
	Electrical life(time)	AC-15(360VA)	0.5×106
		DC-13(33W)
Coil specifications	Rated control voltage(Us)		AC: 12, 24, 45, 110, 220, 380
			DC: 12, 24, 45, 110, 220
	Pick-up voltage		AC: 0.85~1.1Us DC: 0.85~1.1Us
	Resleasing voltage		AC: 0.2~0.75Us DC: 0.2~0.75Us
	Coil power VA	Pick-up	40
		Fotain	4
	Consumption		1.2W
	Pick-up time		6~18ms
	Releasing timePower factor		5~23ms Making 0.8 Breaking 0.3

AC operating coils

Maximum Horsepower Ratings						Maximum Current		Type of Connection	Auxiliary Contacts		Catalog Number
1 Ø		3 Ø				Inductive AC3 Amperes	Resistive AC1 Amperes		Auxiliary Contacts
115 V hp	230 V hp	200 V hp	230 V hp	460 V hp	575 V hp	Inductive AC3 Amperes	Resistive AC1 Amperes		N.O.	N.C.
0.5	1.5	1.5	1.5	3	3	6	15	Screw-clamp	1—	—1	LC1K0610 LC1K0601
0.5	1.5	2	3	5	5	9	20	Screw-clamp	1—	—1	LC1K0910 LC1K0901
0.5	1.5	3	3	7.5	10	12	20	Screw-clamp	1—	—1	LC1K1210 LC1K1201

Coil voltage codes for AC contactors

Volts AC 50/60 Hz

110

120

127

200/
208

220/
230

230

230/
240

277

380/
400

400/
415

440

480

Code

FC7

UE7

DC operating coils

0.5	1.5	1.5	1.5	3	3	6	15	Screw-clamp	1—	—1	LP1K0610 abLP1K0601 ab
0.5	1.5	2	3	5	5	9	20	Screw-clamp	1—	—1	LP1K0910 abLP1K0901 ab
0.5	1.5	3	3	7.5	10	12	20	Screw-clamp	1—	—1	LP1K1210 abLP1K1201 ab

Overload relays for 3-Pole contactors with screw-clamp terminals

Class 10, Relay setting range–A	Catalog Number
0.1 to 0.16	LR2K0301	LR2K overload relays: AC or DC protection Ambient compensated bimetallic Class 10 Single phase sensitivity Manual or auto reset Full load current dial
0.16 to 0.23	LR2K0302
0.23 to 0.36	LR2K0303
0.36 to 0.54	LR2K0304
0.54 to 0.8	LR2K0305
0.8 to 1.2	LR2K0306
1.2 to 1.8	LR2K0307
1.8 to 2.6	LR2K0308
2.6 to 3.7	LR2K0310
3.8 to 5.5	LR2K0312
5.5 to 8	LR2K0314
8 to 11.5	LR2K0316
10 to 14	LR2K0321
