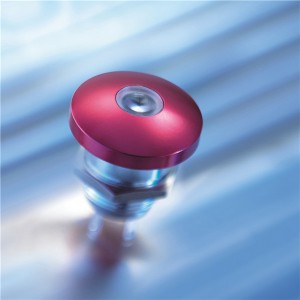

metal push button

Short Description:

‧ For a mounting hole diameter of 16 mm

‧ Contact blocks with silver contacts

‧ Degree of Protection. IP65

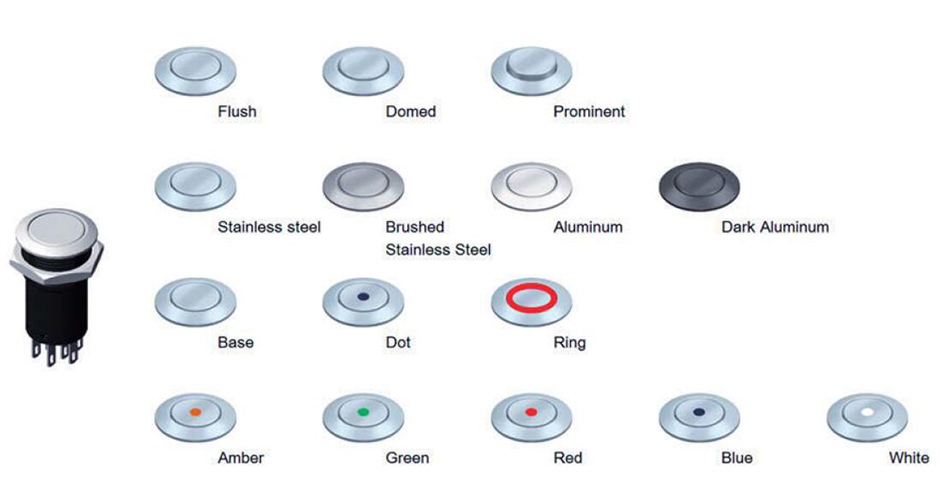

‧ Three different top type; Flush,Prominent or Domed


  • FOB Price: US $5 - 499 / Piece
  • Supply Ability: 5000 Pcs per Month
  • Payment Terms: L/C, D/P, T/T, Paypal
  • Control voltage: 24V 48V 72V 110V 230V 240V 380V 440V 480V
  • Brand : Nofuel
  • Product Detail

    Product Tags

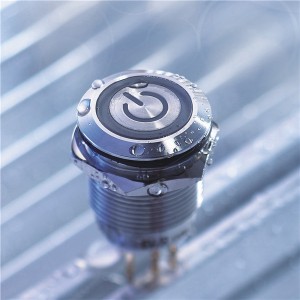

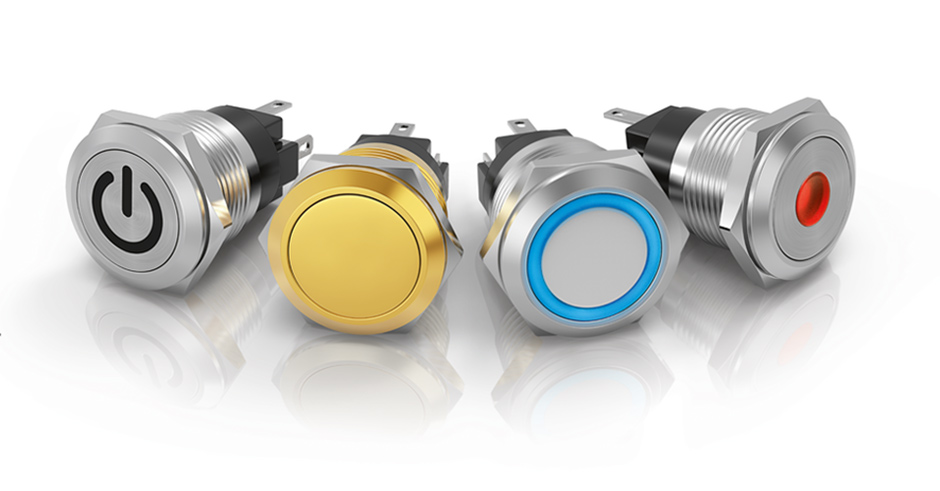

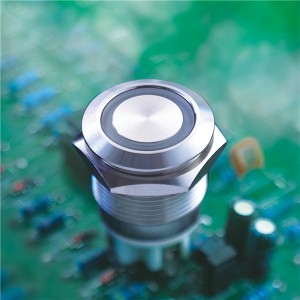

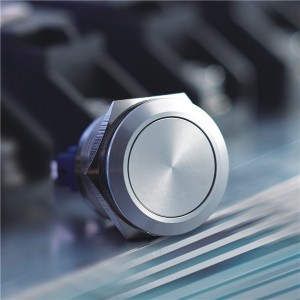

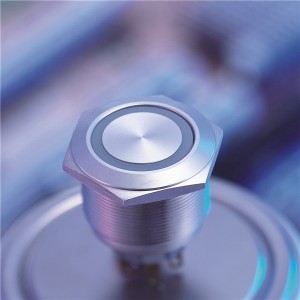

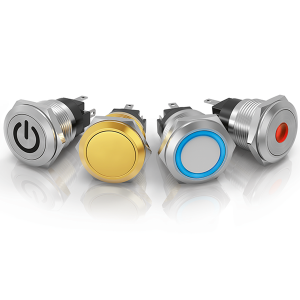

    IP67 Metal Push Button Switches

    M16, M19, M22, M25, ,M30,M32 variants

    Two color indication – super bright LED’s

    Vandal resistant

    Sealed to IP67, “Waterproof”

    Features

    · Illuminated models available in red, green or blue

    · Switching voltages up to 125 VDC / 250 VAC

    · May be used in conjunction with audible devices

    · Available in 16mm,19 mm,22mm,25mm,30mm and 32 mm mounting diameters

    · Carries IP 67 seal protection rating from the front

    · Stainless steel construction withstands temperatures ranging from -40°C to +85°C

    · Ideal for use in harsh environments

    Specification

    Construction Stainless steel body, plastic switch housing
    Degree of protection IP67
    Contact number & arrangement 1NO1NC 2NO2NC (availability depends on body size and actuator style).
    Switch Functions Momentary, Maintained, Keylock, 2 or 3 Position Selector, E-Stop
    Contact material Ag alloy, Au plated
    Max. switching voltage

    AC/DC

    250V AC or 250V DC
    Thermal current 3A (DS12 to DS19) / 5A (DS22 to DS30)
    Minimum applicable load

    AC/DC

    5V, 1mA
    Contact resistance 50mΩ maximum
    Insulation resistance ≥100MΩ / 500V DC
    Dielectric strength                                             Switch 2000VAC, 1 min between live/dead parts and terminals of different poles.
      1000VAC, 1 min between terminals of the same pole
      1500VAC, 1 min between contact and lamp terminals
    Indicator 2000VAC, 1 min between live parts and ground.
    Electrical life                                                          ops ≥100,000 at full rated load
    Mechanical life                                                      ops ≥1,000,000. (Selector/Keylock type ≥ 250,000)
    Weight >10g
    Ambient temperature                                    operating Standards -25°C to 55°CUL508, EN60947-1, EN60947-5-1
    LED Colors available Red, Green, Yellow, Blue, White

    Applications

    · Marine, automotive and aircraft control panels

    · Industrial controllers for manufacturing equipment including:

    Process and packaging equipment

    Self-service kiosks and vending equipment

    Public and institutional security access systems

    Audio and entertainment systems

    Medical diagnosis and hospital equipmentaasPushbutton
