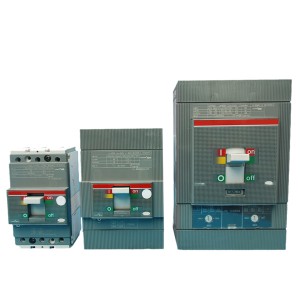

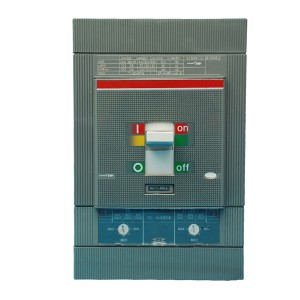

Tmax Moulded Case Circuit Breaker

Short Description:

Experience the superior quality of the Nofuel Series T-Max Molded Case Circuit Breaker.  The Series T-max circuit breaker is ideal for panelboards, switchboards, motor control centers, and busway applications. Choose from a premier selection of trip units including thermal magnetic, electronic, and magnetic only switches. Available for systems up to 600 VAC or 250 VDC with current ratings up to 630A.




  • FOB Price: US $5 - 499 / Piece
  • Supply Ability: 5000 Pcs per Month
  • Payment Terms: L/C, D/P, T/T, Paypal
  • Control voltage: 24V 48V 72V 110V 230V 240V 380V 440V 480V
  • Brand : Nofuel
  • Product Detail

    Product Tags

    Typpe      T1-100        T2-225        T3-400      T4-630
    Rated current In(A) 16…100A 16…250A 63…400A 315…630A
    Number of poles 3

    1

    3 3 3
    Rated voltage Ue(V) AC-380V-69V DC250
    Rated insulation Voltage Ui(V) AC690V
        Short-circuit Interrupting capacity Icu/Ics      AC 690V - 14/7 35/18 35/18
    500V - 14/7 35/18 35/18
    440V 20/10 50/25 100/75 100/75
    415V 25/13 70/70 100/75 100/75
    380V 25/13 70/70 100/75 100/75
    230V 65//33 100/100 200/150 200/150
    DC 250V 10/5 20/10 20/10 20/10
    Dimensions(mm)     a 77

    35

    105 140 210
    b 124 153 258 275
    c 67 86 104 111
    ca 77 108 138 168
    Weight(kg) 1

    0.7

    2.4 6.1 9.4
    Electrical-operation device
    Automatic tripping device Thermal-magnetic Thermal-magnetic Thermal-magnetic Thermal-magnetic

    Tmax
