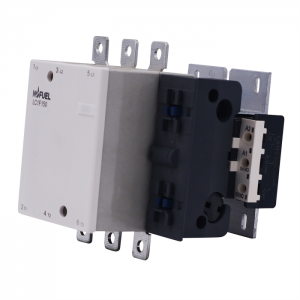

TeSys F Contactors LC1F115 115A 3Pole

Short Description:

TeSys F High power contactors offers high reliability with a long mechanical and electrical life  .Applications from 115 up to 800 full-load amps and resistive loads up to 2100 amps, good performace in heavy duty Industry, renewable energies ,resistive, inductive and capacitive circuits


  • FOB Price: US $5 - 499 / Piece
  • Supply Ability: 5000 Pcs per Month
  • Payment Terms: L/C, D/P, T/T, Paypal
  • Control voltage: 24V 48V 72V 110V 230V 240V 380V 440V 480V
  • Brand : Nofuel
  • Product Detail

    Product Tags

    Part Number AC3 (1) rating (A) KW@460V HP@480V Weight kg
    LC1F115 115 75 75 3.43
    LC1F150 150 90 100 3.43
    LC1F185 185 110 125 4.65
    LC1F225 225 129 150 4.75
    LC1F265 265 160 150 7.4
    LC1F330 330 220 200 8.6
    LC1F400 400 257 250 9.1
    LC1F500 500 355 400 11.75
    LC1F630 630 400 600 18.8
    LC1F800 800 450 800 18.8
    LC1F780 780 450 900 39.5
    Type Used for Contactor
    LX1-FF LC1-F115-F150
    LX1-FG LC1-F185-F225
    LX1-FH LC1-F265-F330
    LX1-FJ LC1-F400
    LX1-FK LC1-F500
    LX1-FL LC1-F630
    LX1-FK LC1-F780

    Nofuel Part #

    Coil Voltage

    HP Ratings @230V

    HP Ratings @460V

    Amp
    Ratings @AC3



    LC1F115

    120

    40

    75

    115



    LC1F115B7

    24

    40

    75

    115



    LC1F115G6

    120

    40

    75

    115



    LC1F115G7

    120

    40

    75

    115



    LC1F115U7

    240

    40

    75

    115



    LC1F150

    120

    50

    100

    150



    LC1F150B7

    24

    50

    100

    150



    LC1F150G6

    120

    50

    100

    150



    LC1F150L7

    208

    50

    100

    150



    LC1F150G7

    120

    50

    100

    150



    LC1F150U7

    240

    50

    100

    150



    LC1F185

    120

    60

    125

    185



    LC1F185B7

    24

    60

    125

    185



    LC1F185G6

    120

    60

    125

    185



    LC1F185L7

    208

    60

    125

    185



    LC1F185G7

    120

    60

    125

    185



    LC1F185U7

    240

    60

    125

    185



    LC1F225

    120

    75

    150

    225



    LC1F225B7

    24

    75

    150

    225



    LC1F225G6

    120

    75

    150

    225



    LC1F225L7

    208

    75

    150

    225



    LC1F225G7

    120

    75

    150

    225



    LC1F225U7

    240

    75

    150

    225



    LC1F265

    120

    75

    150

    265



    LC1F265B7

    24

    75

    150

    265



    LC1F265G7

    120

    75

    150

    265



    LC1F265L7

    208

    75

    150

    265



    LC1F265S7

    480

    75

    150

    265



    LC1F265U7

    240

    75

    150

    265



    LC1F330

    120

    100

    200

    330



    LC1F330B7

    24

    100

    200

    330



    LC1F330G7

    120

    100

    200

    330



    LC1F330L7

    208

    100

    200

    330



    LC1F330S7

    480

    100

    200

    330



    LC1F330U7

    240

    100

    200

    330



    LC1F400

    120

    125

    250

    400



    LC1F400G6

    120

    125

    250

    400



    LC1F400L7

    208

    125

    250

    400



    LC1F400N7

    415

    125

    250

    400



    LC1F400U7

    240

    125

    250

    400



    LC1F500

    120

    200

    400

    500



    LC1F500G6

    120

    200

    400

    500



    LC1F500L7

    208

    200

    400

    500



    LC1F500N7

    415

    200

    400

    500



    LC1F500U7

    240

    200

    400

    500



    LC1F630

    120

    300

    600

    630



    LC1F630G7

    120

    300

    600

    630



    LC1F630L7

    208

    300

    600

    630



    LC1F630N7

    415

    300

    600

    630



    LC1F630U7

    240

    300

    600

    630



    LC1F800

    120

    400

    800

    800



    LC1F800G7

    120

    400

    800

    800



    LC1F800L7

    208

    400

    800

    800



    LC1F800N7

    415

    400

    800

    800



    LC1F800U7

    240

    400

    800

    800



    LC1F780

    120

    450

    900

    1000



    LC1F780G7

    120

    450

    900

    1000



    LC1F780L7

    208

    450

    900

    1000



    LC1F780N7

    415

    450

    900

    1000



    LC1F780U7

    240

    450

    900

    1000
