Charging station offer

••Compliant with power supply network: 220-240 V / 380-415 V

••7.4 kW or 22.1 kW (32 A for 230 / 400 V) and settable from 6 A to 32 A

••Frequency: 50 Hz or 60 Hz

••Socket outlet supply circuit (1 circuit per socket outlet):

–220/240 V 1P+N or –380/415 V 3P+N

••Control circuit voltage (for charging station): -220/240 V 1P+N

••High robustness of Socket outlet (Type 2 or Type 2 with shutters)

to silver plated contact avoiding overheat

••Multiple configurations: user identification, one or two sockets outlets,

floor-standing or wall-mounted

Options

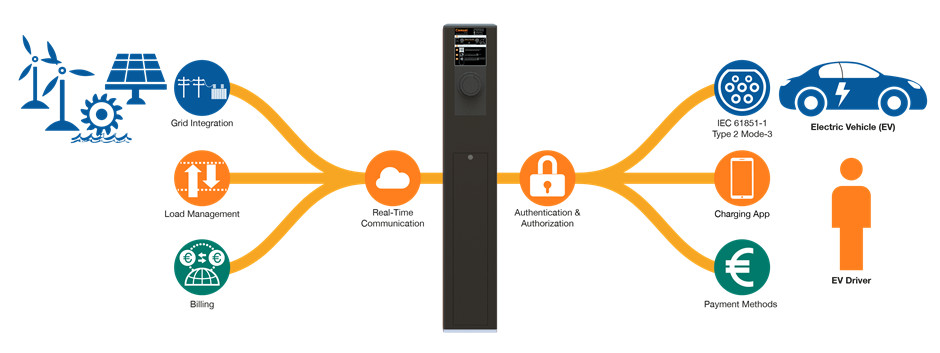

••Ethernet communication with supervision system via GPRS modem

Accessories offer

••Cables, RFID badges, cable holder, modem, etc.

Spare parts offer

••Floor base, wall base, socket outlet, caps, flap, etc.

Mechanical and environmental

••Painted steel body, anti-corrosion treatment

••Protection: IP54 (IEC 60529), IK10 (IEC 62262)

••Operating temperature: -25°C to +40°C

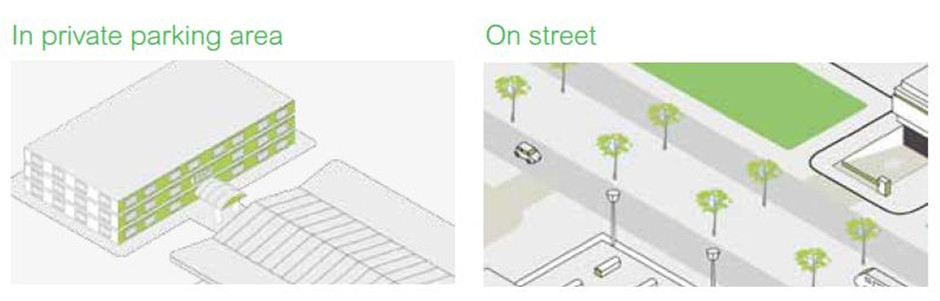

Application
